    1) Super high cell solution treatment capacity, 3-250ml or 1.5e6-1.0e10 cells,expandable. 2) Flow HiDEN, Flow High Density Electrode Needle, is patented technology designed to create a highly ...

    1. Product introduction


    2. Product Features
    1) Super high cell solution treatment capacity, 3-100ml or 1.5×107-1.0×1010 cells,expandable.

    2) Flow HiDEN, Flow High Density Electrode Needle, is patented technology designed to create a highly even and stable electrical field under a lower valtage, which achieves high transfection efficiency and high viability.

    3) In GMP workshop, production, sterilization and quality inspection of consumables are conducted according to GMP standards.

    4) The special electroporation buffer (from Etta Biotech) can protect cells better and redcuce cell mortality, significantly enhancing the transfection efficiency.

    5) Applied to R&D, testing and small amount preparation.

    6) Reasonable and affordable equipment and consumable cost, obtaining an absolute dominance.
  • Item

    Parameter

    Cell Type eukaryotic cell suspension
    Optimal Cell Density 1×108 cells/ml
    Volume of single treatment 3-250 ml
    Compatible Container Corning 15ml, 50ml, 250ml centrifugation tube
    Velocity 1-50 ml/min
    Electric Form Square Wave
    Input Voltage 210-240 VAC
    Output Voltage 30 - 600 VDC
    Operation System Etta Biotech EBXP-F1 software
    Operation System Platform Linux
    Dimensions W623×D452×H325 mm
    Weight Approx. 27 kg



  • 1) R&D of new drugs: mainly used in small-batch preparation for protein/antibody, screening of antibody drug and screening of positive clone, etc. Providing a faster and more cost-effective solution for enterprises engaged in R&D of new drug and antibody production.

    2) Cell immunotherapy research: applied to large-scale preparation for CAR-T, CAR-NK. Making the process more standardized in the R&D phase while making up for imperfection of the virus-vector scheme.

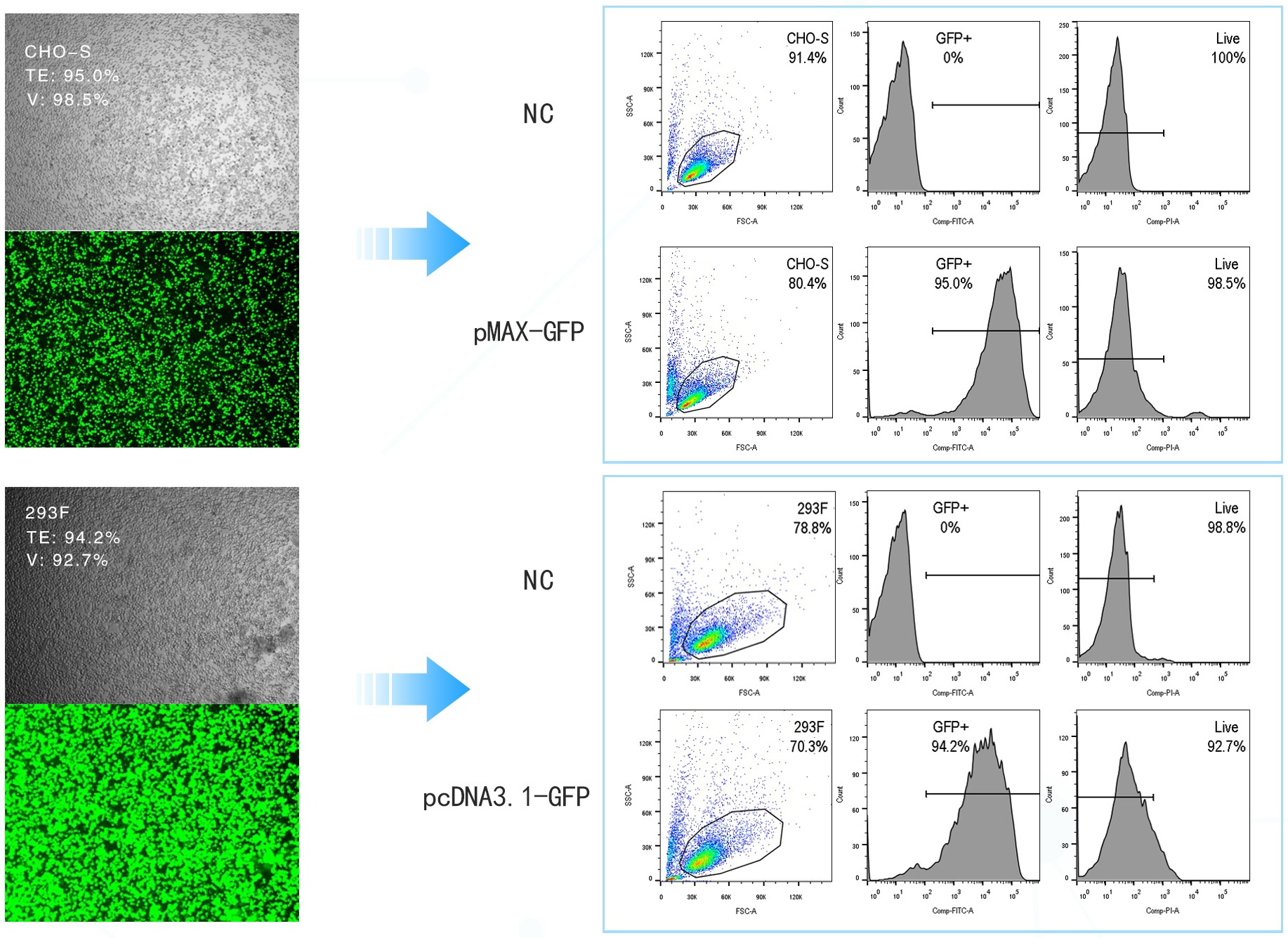

  • 1. Some Demo Results

  • No content information display available
